AVAILABLE FOR IMMEDIATE REMOVAL

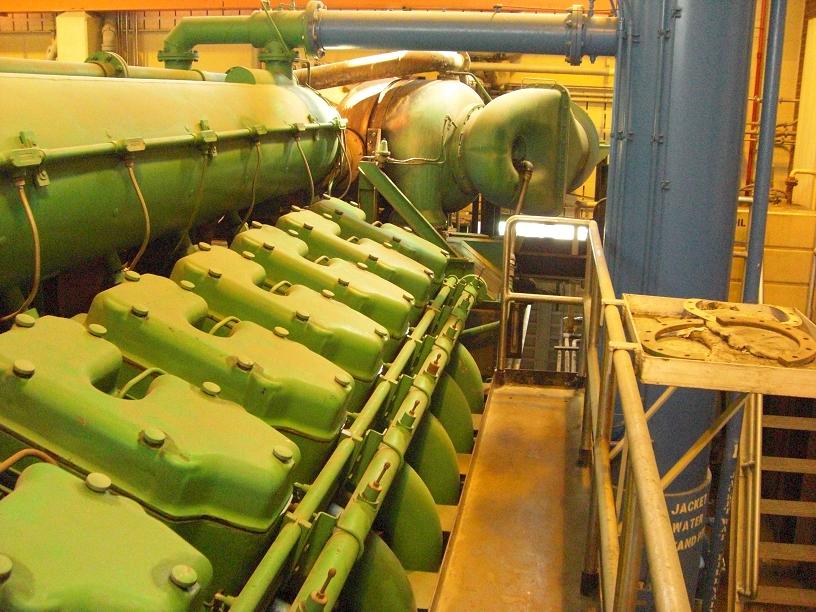

TWO (2) DELAVAL ENTERPRISE DGSRV-16-4, DUAL FUEL ENGINE / GENERATOR SETS
ENGINE SERIAL NUMBERS: 86004-3135 & 86005-3136
MANUFACTURED: 1987
DUAL FUEL (#2 FUEL OIL, DIGESTER GAS)
NUMBER OF CYLINDERS: 16
RATED HORSEPOWER (EACH): 8338
RATED SPEED: 450 RPM
BORE: 17 INCHES
STROKE: 21 INCHES
BMEP: 192 PSI
FLYWHEEL DIAMETER: 90 INCHES
COOLING: HEAT EXCHANGED
STARTING SYSTEM: PILOT AIR, GEAR DRIVEN DISTRIBUTOR
MANUFACTURED BY: IMO DELAVAL, INC. (ENTERPRISE ENGINE DIVISION) OAKLAND, CA
GENERATOR DATA: LOUIS ALLIS SYNCHRONOUS GENERATOR
TYPE: TBGZBDJP
RATING: 7000kW (8750 kVA) CONTINUOUS DUTY
VOLTAGE: 4160
PHASE: 3
FREQUENCY: 60 HZ
SPEED: 450 RPM
FL AMPS: 1214
FRAME: 1X-34
ROTATION: CW
POWER FACTOR: 0.08
INSULATION: CLASS F
TEMP RISE: 80 DEG
PHASE SEQUENCE: ABC T1.T2.T3
**HOURS ARE ESTIMATED TO BE LESS THAN 15,000 SINCE NEW**

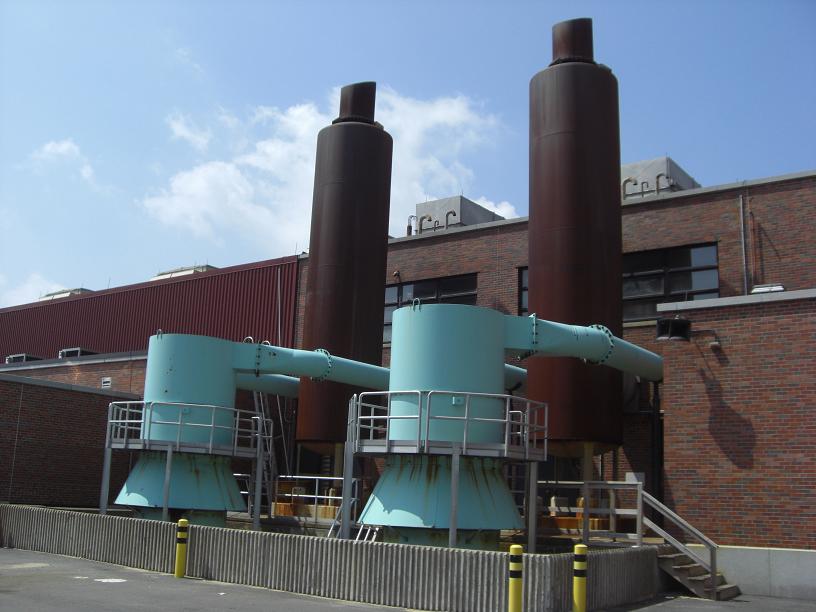

INCLUDED: SILENCERS, AIR INTAKES, COOLERS, CONTROLS, FILTERS, REGULATORS & MUCH MORE!
These (2) gensets have low hours and have been stored inside a climate controlled room. They will be removed from their existing location within the next 60 days. In addition to the complete gensets, there is also a large number of surplus spare parts (including a turbocharger and an intercooler). We would ideally like to sell the complete plant as a whole. But, would consider serious offers to part it out. Please contact us for more information, or if you have specific questions. A list of spare parts is available up on request. SERIOUS INQUIRIES ONLY!
SOLD!!
